Juice screw extractor with low speed

<h2>Juice screw extractor with low speed</h2>

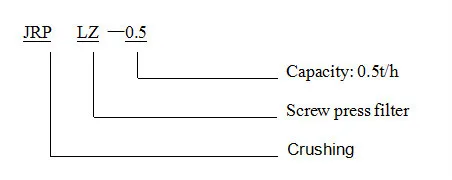

1. Product Model and name

2. Application:

It is used for all kinds of fruit to press juice, for example pineapple, apple,

orange and etc.

This machine is suitable for all kinds of berries, kernel fruit and various vegetables.

In addition, it also can crush and press the pre-cooking softening fruits and

vegetables with high viscosity. The juice yield can reach up to 45%-65%( tomato).

3. Specification:

4. Principle and working principle

(1) structure:

It is consist of crushing device, front pedestal, screw, filter net, juice container, rear

pedestal, slag notch and so on. The lift part of screw spindle lies inside the floating

bearing while the right part of screw spindle lies inside hand-wheel bearing.

The motor can work by a pair of v-belt pulley drive screw.

(2) working principle

The main components of the equipments is spiral, which increases gradually along

the material residue outlet direction while the screw pitch reduces gradually. when the

materials are pushed in by the spiral , due to the volume contraction of the spiral

cavity , the materials are extracted .

When the raw materials are added into the material feeding hopper, they receive

pressure under the boosting of the spiral and the extracted juices will flow into the juice

container through the filter screen, and the waste materials will be discharged trough

the ring interval formed between the spiral and the pressure adjusting taper part . the

movement towards the axial direction by the pressure adjusting head can adjust the

size of interval so as to adjust the juice extracting rate .

Packaging & Shipping

♥24 hours on-line service for you

♥Professional person reply your questions

♥One year warranty for you

♥Perfect and careful after-sale service

♥Fast delivery for you

Zhengzhou hongle machinery & equipment co.ltd is engaged in the development,

design, manufacture and sale of meat processing machinery. Zhengzhou hongle

food machinery factory over the years adopts many new ideas, absorbs a wide

range of advanced technologies worldwide as well as excellent processing and

testing equipment, and takes a reliable strict quality guarantee system and an

important after-sales service system to win customers' trust in the industry.

We have strong technical force and standard management. Our existing products

are related to the meat processing industry and flour product processing industry,

including frozen meat grinders, cutting machines, mixers, saline injection machines,

roll kneading machines, filling machines, vacuum and surface machines and mixing

trap machines, totally 20 categories of products.

We are willing to join hands with customers for common

development and contribute to the revitalization of the food processing industry.

Q: Why don't person reply to me?

A: Our person is 24hours on-line. When nobody reply you , please leave your

requirements on e-mail or chat tool, we will reply you as soon as possible.

Q:Can you guarantee your quality?

A:Of course. We are the manufacture factory. More important, we put a high value

on our reputation. Best quality is our principle all the time. You can be assured on our

production completely.

Q:How do you make your price?

A: We make the price according to our comprehensive costing. And our price will lower

than the trade company because we are manufacture.You will get competitive price and

better quality.

If you have any questions, Susan will reply you as soon as possible.
